UL/DLC LED Panel Light 2X2
You are here : Home > LED PANEL LIGHT > UL/DLC LED Panel Light 2X2
  • detail
  • manual

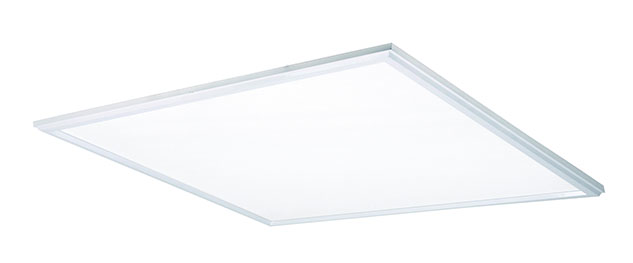

Product Name: UL/DLC 4.0version LED Flat panel light 2X2

Wattage:27W/31W/40W/45W

Input voltage:100V-277V

UL/DLC Certs, UL file no.:20150331-E482163

High Standard LED Panel Light

UL/DLC 4.0version LED Flat Panel Light 2*2ft


Product Feature

1.This product is energy-saving with no UV,no flicker, Light efficiency

can reach 130lm/W with UL/DLC Certs,UL file no.:20150331-E482163



2. Available in 1'x4', 2'x2' and 2'x4'  Sizes


3. CCT:3000K,3500K,4000K,4500K,5000K


4. CRI>80lm


5. Dimmable : 0-10V dimming


6. 5 years warranty










Model

Power

Votage

lumen/W

CCK

CRI

Certs

Size (L*W*H)

PL11-027-22HD3000

27W

100-277V

122lm/W

3000K

 80

UL/DLC

2*2ft

PL11-027-22HD3500

27W

100-277V

124lm/W

3500K

 80

UL/DLC

2*2ft

PL11-027-22HD4000

27W

100-277V

124lm/W

4000K

 80

UL/DLC

2*2ft

PL11-027-22HD4500

27W

100-277V

126lm/W

4500K

 80

UL/DLC

2*2ft

PL11-027-22HD5000

27W

100-277V

128lm/W

5000K

 80

UL/DLC

2*2ft

PL11-031-22HD3000

31W

100-277V

126lm/W

3000K

 80

UL/DLC

2*2ft

PL11-031-22HD3500

31W

100-277V

128lm/W

3500K

 80

UL/DLC

2*2ft

PL11-031-22HD4000

31W

100-277V

130lm/W

4000K

 80

UL/DLC

2*2ft

PL11-031-22HD4500

31W

100-277V

132lm/W

4500K

 80

UL/DLC

2*2ft

PL11-031-22HD5000

31W

100-277V

134lm/W

5000K

 80

UL/DLC

2*2ft

PL11-040-22HD3000

40W

100-277V

120lm/W

3000K

 80

UL/DLC

2*2ft

PL11-040-22HD3500

40W

100-277V

122lm/W

3500K

 80

UL/DLC

2*2ft

PL11-040-22HD4000

40W

100-277V

124lm/W

4000K

 80

UL/DLC

2*2ft

PL11-040-22HD4500

40W

100-277V

126lm/W

4500K

 80

UL/DLC

2*2ft

PL11-040-22HD5000

40W

100-277V

128lm/W

5000K

 80

UL/DLC

2*2ft

PL11-045-22HD3000

45W

100-277V

116lm/W

3000K

 80

UL/DLC

2*2ft

PL11-045-22HD3500

45W

100-277V

118lm/W

3500K

 80

UL/DLC

2*2ft

PL11-045-22HD4000

45W

100-277V

120lm/W

4000K

 80

UL/DLC

2*2ft

PL11-045-22HD4500

45W

100-277V

122lm/W

4500K

 80

UL/DLC

2*2ft

PL11-045-22HD5000

45W

100-277V

124lm/W

5000K

 80

UL/DLC

2*2ft

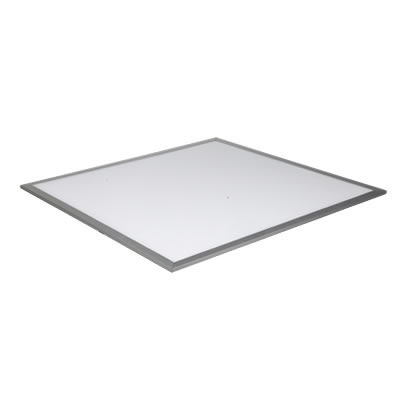

Product Name: UL/DLC LED panel light 2X2

Item no.:PL11-22

Wattage:27W/31W/40W/45W

Input voltage:100V-277V

UL/DLC


More specifications

Instruction

1. Turn off the power.

2. connect the commercial power with the input of thematched power supply, make sure that no copperware exposed.

3. Connect matched power supply and panel light togetherthrough the plug.

4. Fix the panel light and power supply at suitableplace.

5. Turn on the power.


Notes

The panel should be driven by appointed power supply.

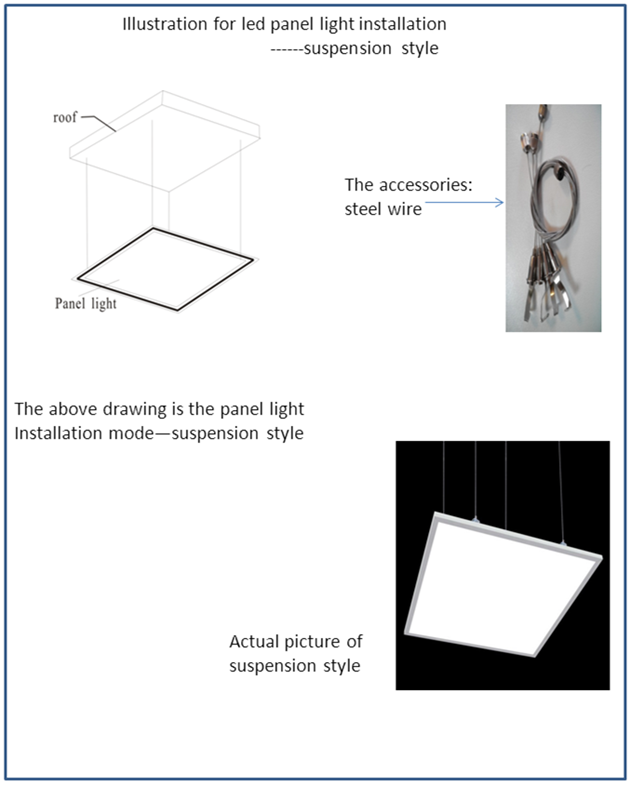

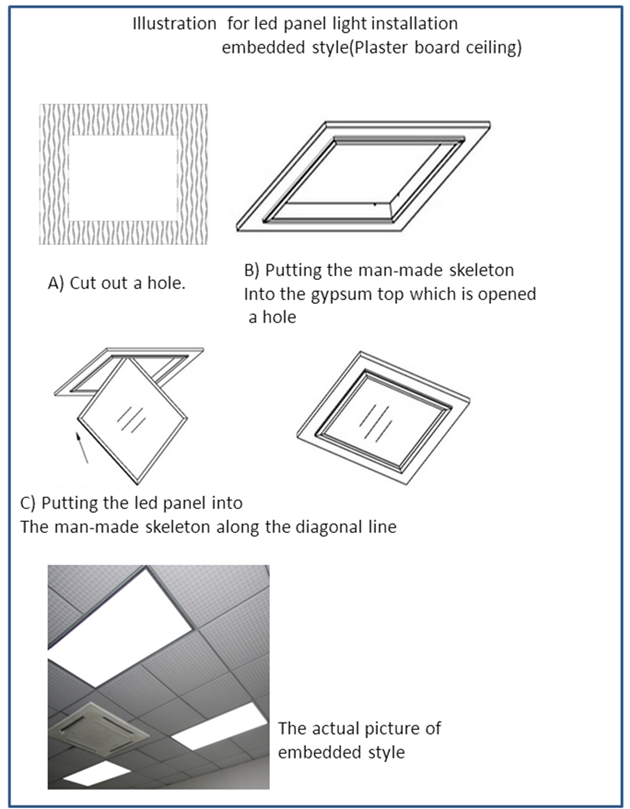

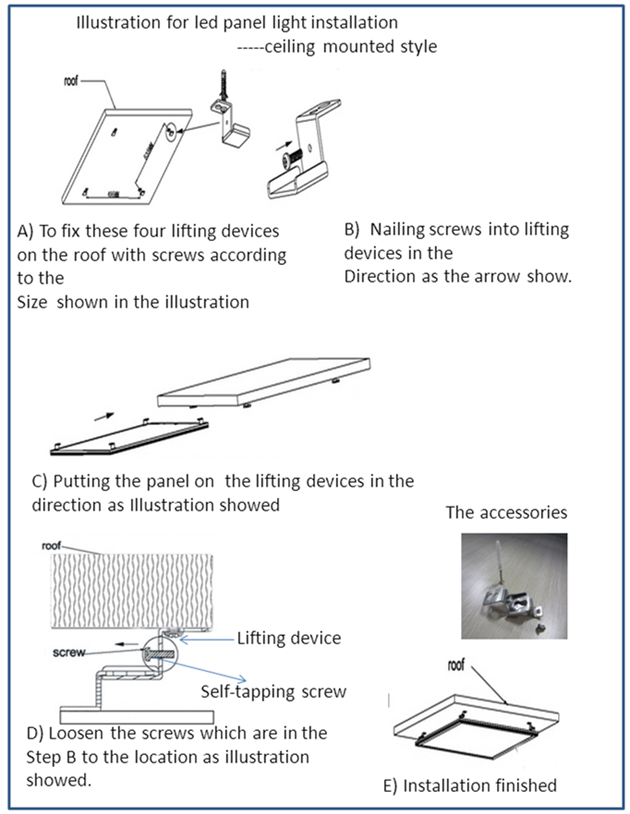

Installation way: recessed, mounted ,suspended by fixing bracket on the back.
